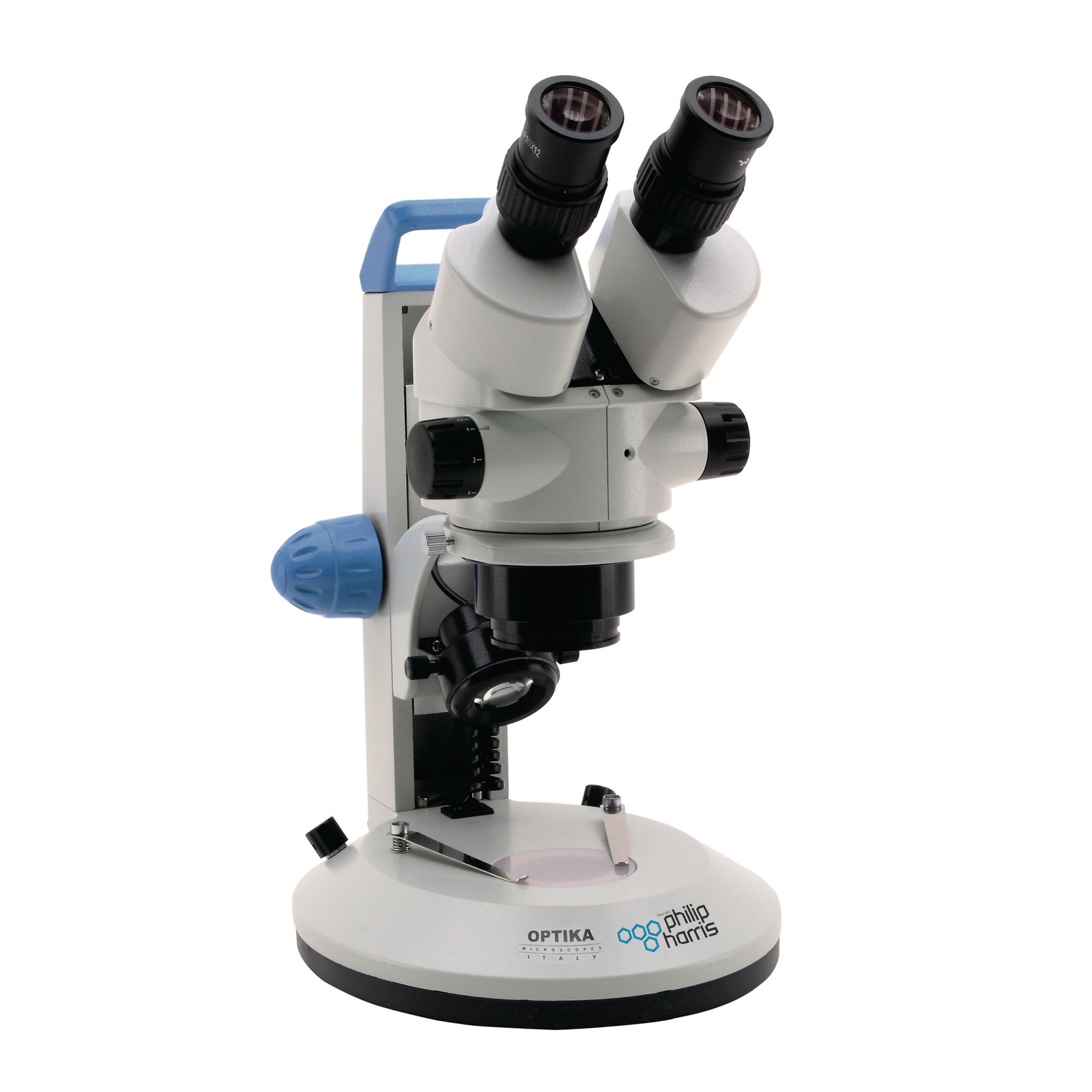

Very similar specification to the Lab 10 model, but fitted with zoom objectives and capable of up to 45x magnification.

Full Specification:

•Total magnification: Up to 45x.

•Eyepieces: WF10x/20mm.

•Head: Binocular, 360° rotating, 45° inclined front side eyepiece tube. Diopter adjustment on both eyepieces. Interpupillary adjustment 51-75mm.

•Nosepiece: Turret type.

•Objectives: Achromatic 0.7x and 4.5x zoom objectives. Zoom factor 6.43:1. Working distance 85mm. Higher magnifications possible using additional eyepieces and lenses.

•Stage: Semi-transparent plastic disc for transmitted light.

•Focussing: Rack and pinion mechanism controlled by a pair of knobs.

•Illumination: Double intensity adjustable incident and transmitted LED illumination. The angle of the incident illuminator is adjustable.

•Optical system: Achromatic.

•Voltage: External power supply 110/240V, 50/60Hz, 1A. Max. power 7W

•Dimensions: H360 x W300 x D190mm.

•Weight: 7kg

•Accessories included: Power supply, dust cover and instructions.
