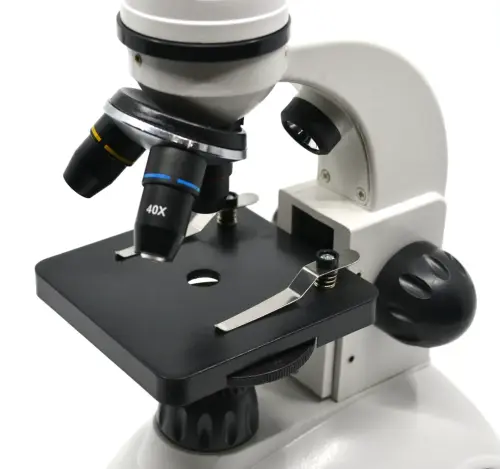

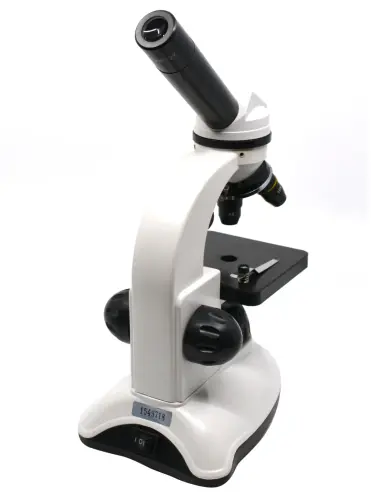

Philip Harris M-100FX Monocular LED microscope is a good, economically priced educational microscope suitable for all manners of microscope work from basic use at Key Stage 3 to Key Stage 4. The microscope has a WF10X/18mm eyepiece, which can be removed to allow the insertion of an eyepiece camera or eyepiece micrometer when necessary, and is capable of magnification of up to 400x. It also has an LED illuminator, consisting of a 1W LED. A robust microscope with interchangeable eye pieces ideal for the majority of school biological applications.

Accessories included:

• Power supply
• Instruction manual
• Dust cover

Accessories available to purchase separately:

• Eyepiece WiFi Cameras (PP00050387 - USB, PP00050388 - Wireless)
• Eyepiece Micrometer M004 (B8R06422)
• Replacement Power Supply (B8R07970)
• Stage Micrometer (B8A76119)
• Alcohol-free Antiseptic Wipes - for cleaning eyepieces between use (B8R08715)
• Lens Cleaning Tissue (B8R07090)
• Microscope Maintenance Kit (B8R07243)

Technical Specifications:

• Total magnification: 40x, 100x, 400x
• Eyepiece: Wide Field 10x/18mm
• Head: monocular, 360° rotating, with 45°inclined
• Nosepiece: Triple rotating on ball bearings
• Objectives: Anti-fungal treated. Achromatic with mechanical tube: length 160mm, 0.17mm cover glass 4x, 10x, 40x
• Stage: Fixed, 120 x 110 mm, with sample clips
• Focussing: Separate coarse and fine focusing mechanism
• Condenser: N/A. 0.65, fixed, iris diaphragm
• Illumination: 1W LED
• Observation mode: Brightfield
• Voltage: 240V, 50Hz; Max. power 500mA
• Dimensions: (H)365mm x (W)132mm x (D)220mm
• Weight: 2.3kg
• Age Suitability: 11-16 Years
