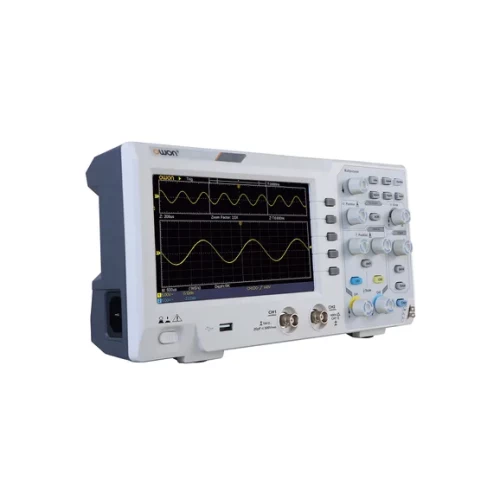

The SDS1022 digital oscilloscope from Owon offers reliable measurement technology for a great price. It is ideal for the workshop, hobbies or educational use. The 7" colour TFT LCD panel with a resolution of 800 x 480 allows excellent readability of the waveforms. It offers a 20MHz bandwidth, a sampling rate of 100 MSa/s in dual channel and a memory depth of 10K.

• Supports SCPI and LabVIEW communications protocols.
• Includes a USB port for connection to PC and as a host to connect a USB drive.
• Supplied with 2 probes, USB cable, PC software, power cable and user manual.
•

Specification:

• Bandwidth: 20 MHz
• Sampling: 100 MS/s
• Display: 7" colour TFT display 800x480 pixels
• Memory: 10K
• Maximum voltage: 400V (peak)
• Time base: 5 nS / Div at 100 s / Div
• Voltage difference And time difference between cursors
• Vpp, Vmax, Vmin, Vtop, Vamp, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A? B Rising Edge, Delay A? B Falling Edge, + Width, -Width, + Duty, -Duty
• Interfaces: USB PC Connection, USB Host for pendrives
• Dimensions: (W)301mm x (H)152mm x (D)70mm
• Weight: 1.10 kg
• Shipping Weight 1.6 kg
